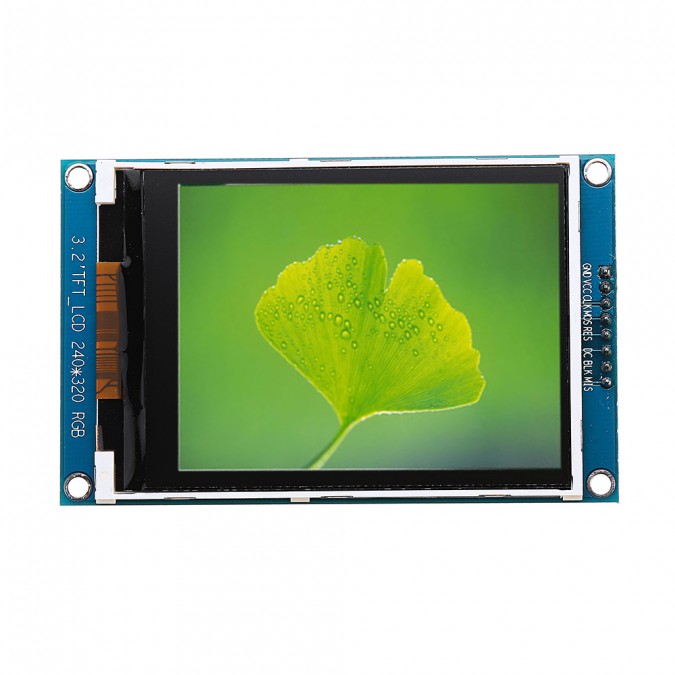

Description:
Size: 3.2 inches
Control chip: ILI9341
Resolution: 240*320 (RGB)
Display area: 48.60 (W) *64.80 (H)
Physical size: 56 (W) *89.40 (H) *4.65+/-0.15 (T)
Interface type: 3 line serial port /4 line serial port
Number of pins: 8Pin
Display color: Full color
Pixel size: 0.2025 (W) *0.2025 (H)
Working temperature: -20 ~ 70 degrees
| PIN No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | VCC | Power supply for LCD(2.8V-3.3V) |
| 3 | CLK | This pin is used serial interface clock in 3-wire 9-bit / 4-wire 8-bit serial data interface. |
| 4 | MOSI | Serial input signal. The data is applied on the rising edge of the SCL signal. |
| 5 | RES | LCM Reset pin.Signal is active low. |
| 6 | DC | Serves as a write signal and writes data at the rising edge. – 4-line system (D/CX): Serves as command or parameter select. |
| 7 | BLK | Backlight switch pin. Low level turns off the backlight, other states turn on the backlight |
| 8 | MISO | Serial output signal. The data is outputted on the falling edge of the SCL signal. If not used, open this pin |
Package Included:
1 x 3.2 Inch TFT LCD Screen
