Working mode:
Turn on the power, LED lit, but the relay does not work, trigger the termination button or PNP sensor trigger, when there is a high level trigger (or the button is instantaneously connected to the positive power supply), the relay starts to work, the countdown delay, when the delay time arrives, the relay disconnects.
Feature:
Voltage: 12V
Size: 63.6mm × 33.1mm
Current: standby about 12ma, working about 50ma
Load: Below 250V 5A AC or below 30V 5A DC
With power-down memory function
Error: 0.01% /second
Delay: 0-999 seconds
High-level trigger, counting time is 0-999 seconds
Product comes with input and output with optocoupler isolation
Package includes:

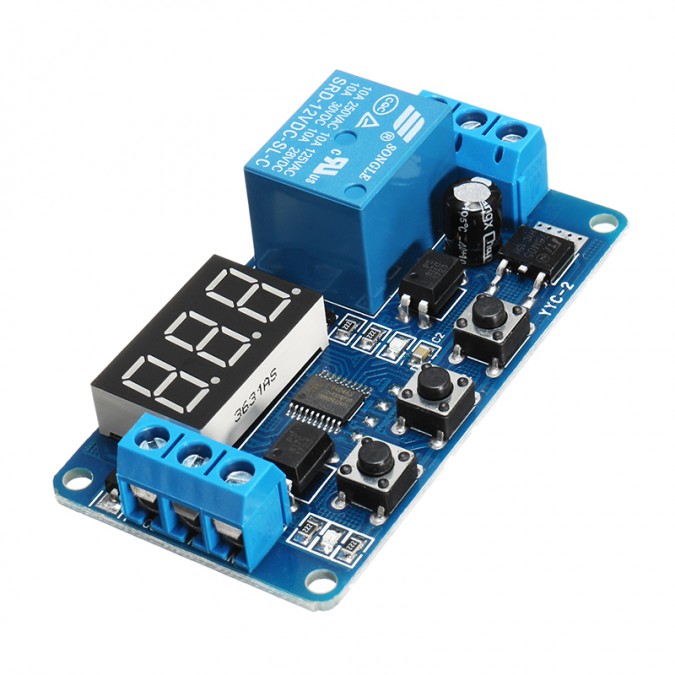

1 x External Trigger Delay Switch Module
